Aircraft panel CAD drawings

[flysportstar]

Need a new panel, want to update an existing aircraft panel, build a realistic flight simulator panel, or want some neat and unique artwork for your FBO or office?

A CAD library of panels is available for many popular light GA aircraft including:

• Cessna
  Piper
  Beechcraft
  Mooney
  Grumman
  Diamond

Experimental and homebuilt designs include:

• Cub Crafters
  Rans
  Sonex
  Murphy
  Kitfox
  RV
  Vans
  Zenair

https://www.splaser.ca/browse/catpiVcy_294436.aspx

All CAD drawings include AI, SVG, JPG, PDF and a DXF file for laser, waterjet, or screen printing. and can be modified to fit your aircraft's configuration, or layout.

Custom panel drawings with your exact gauges and radio/nav, set up are our specialty

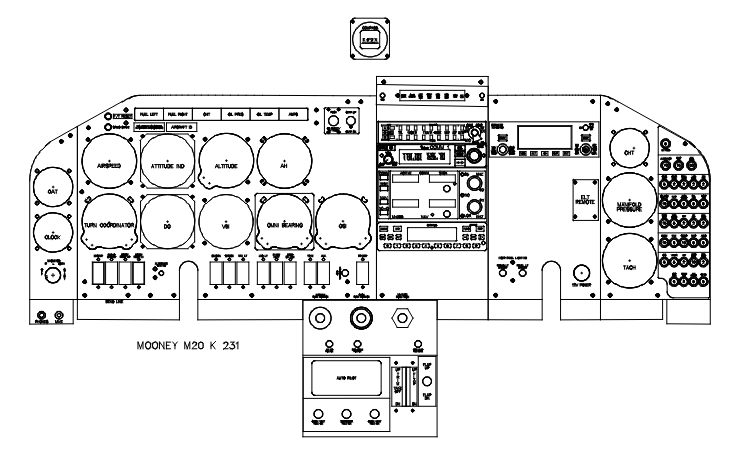

Here are a few examples of panel drawings done for customers.








Updated September 5 2025

Lots more panel drawings available.
We have been working hard to bring you more full size printable panel drawings.

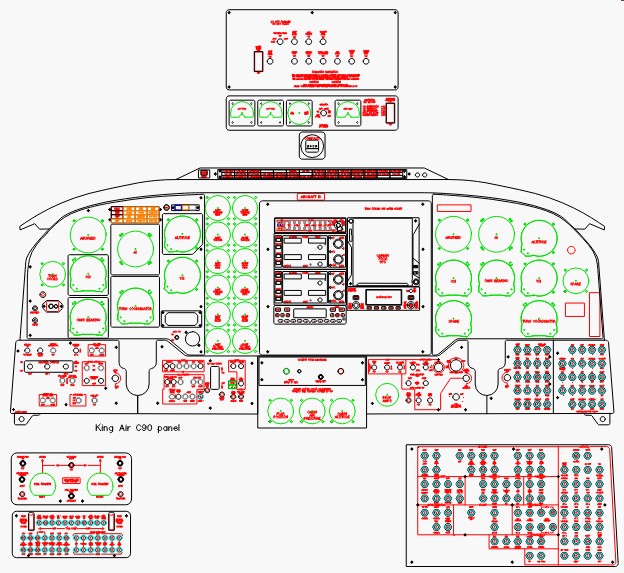

King Air panel

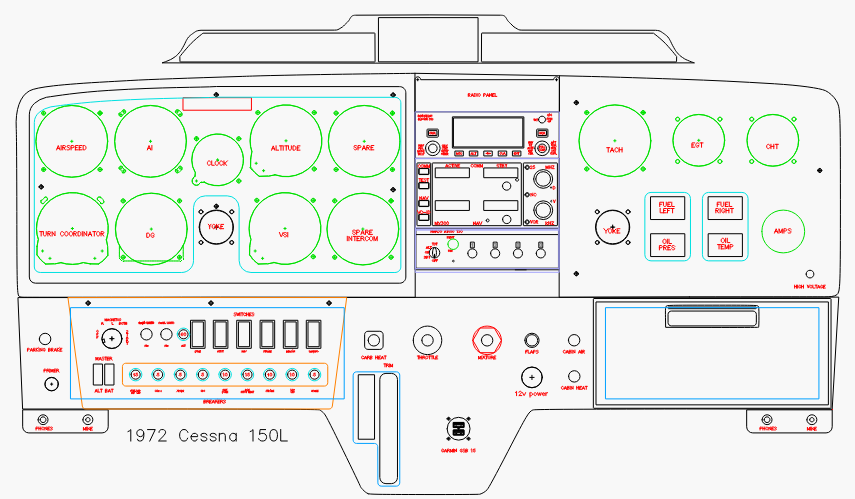

Cessna 150 panels

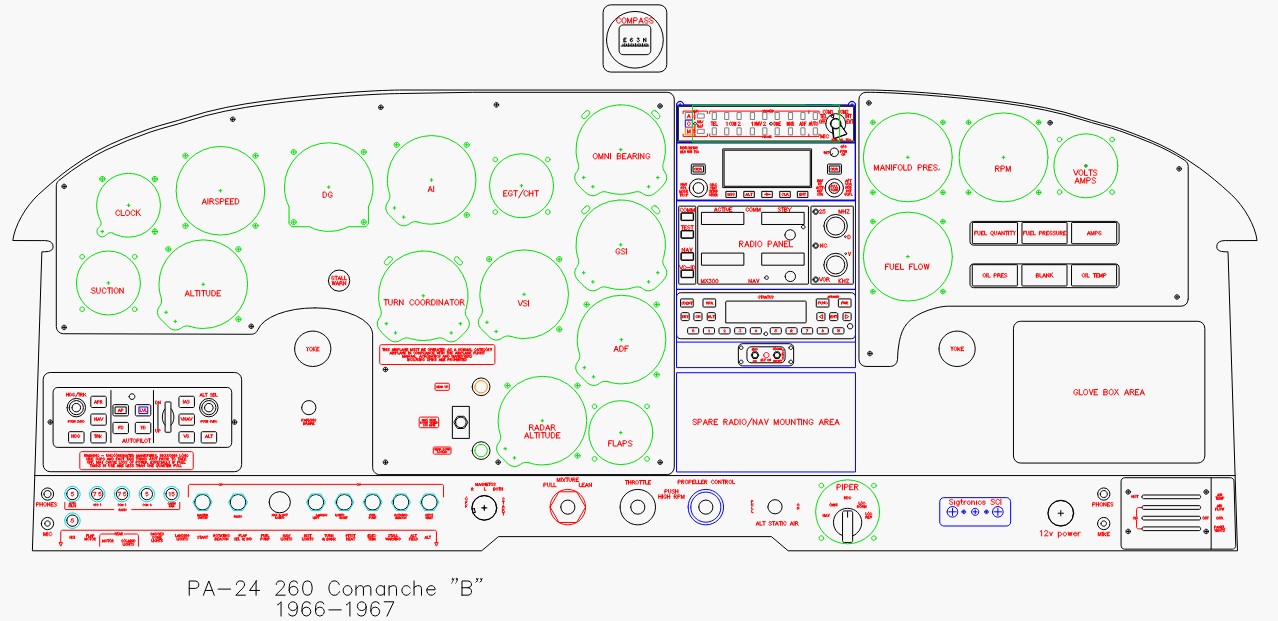

PA 24 260 panel





And.....lots more.
